SOLID CUT U 700

Future-oriented manual cutting of large cross-sections – safely and quickly, especially for large cross-sections. Back to previous page

When it comes to performance and large cross-sections, the SOLID CUT U 700 is the first choice. With a cutting height of up to 210 mm and a cutting width of up to 750 mm, it effortlessly handles large planks, boards and panels – ideal for professional timber construction and demanding applications.
The robust construction and powerful drive guarantee maximum precision even with large workpieces. Thanks to its well-thought-out design and solid undertable, the SOLID CUT U 700 offers maximum safety, smooth running and durability – for powerful cuts and perfect results in continuous use.

Incredibly easy to operate
Universal and versatile use
Low space requirements
BG-certified work safety

SOLID CUT U 700 details

Motor power: 5,5 / 7,5 kW
Saw blade diameter: 500 / 630 mm
Cutting height min./max.: 10-175 / 10-210 mm
Cutting width min./max.: 20-750 mm
Working height: 850 - 915 mm
Conveyor rollers for table: 700 mm
Protective shield, lowered pneumatically: X

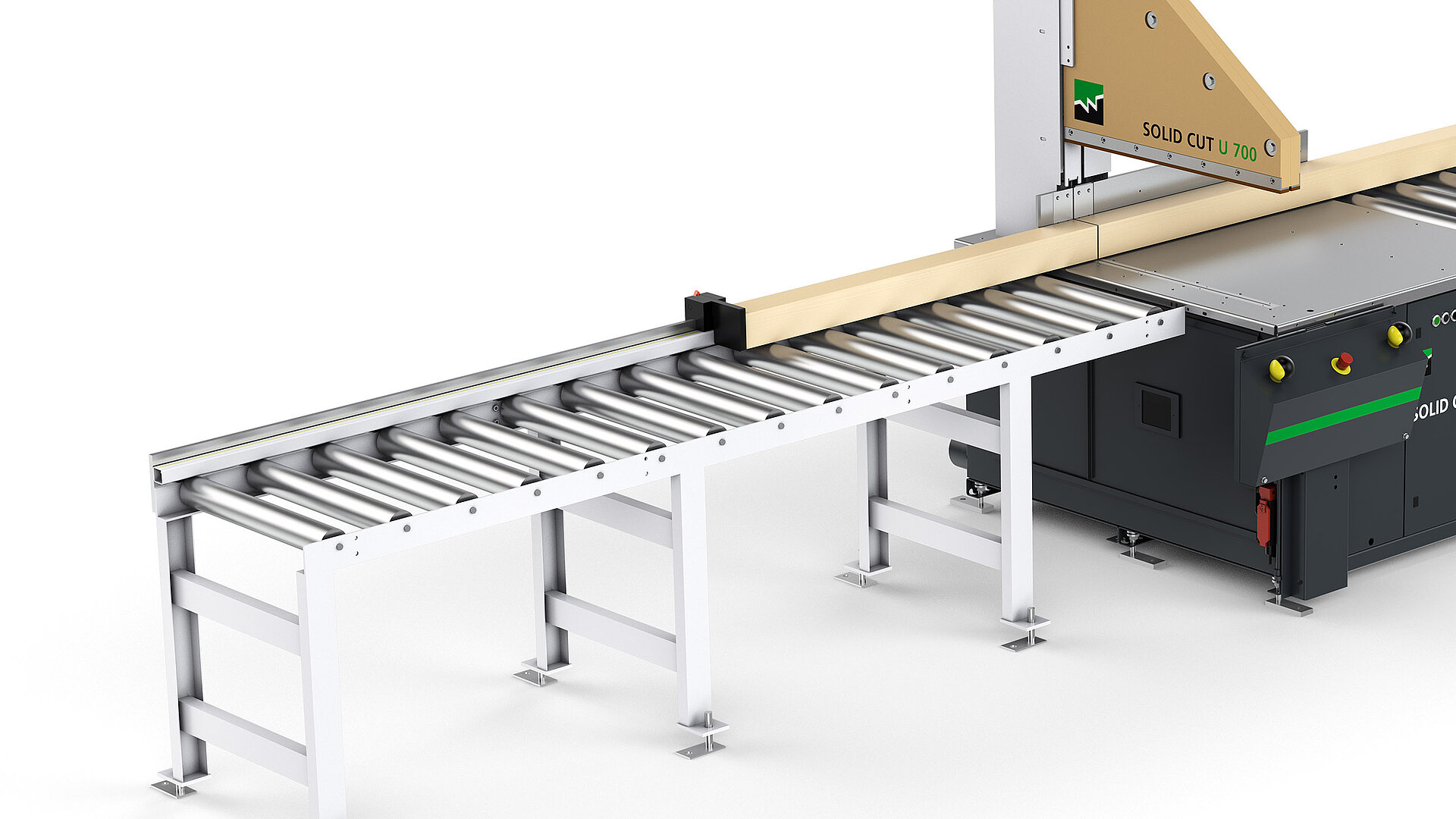

Rollers for comfortable transport

The roller conveyor makes it easy to transport the material to the saw. The robust designs are perfectly matched to the respective U model and can also be equipped with a clear and easy-to-read measuring scale.

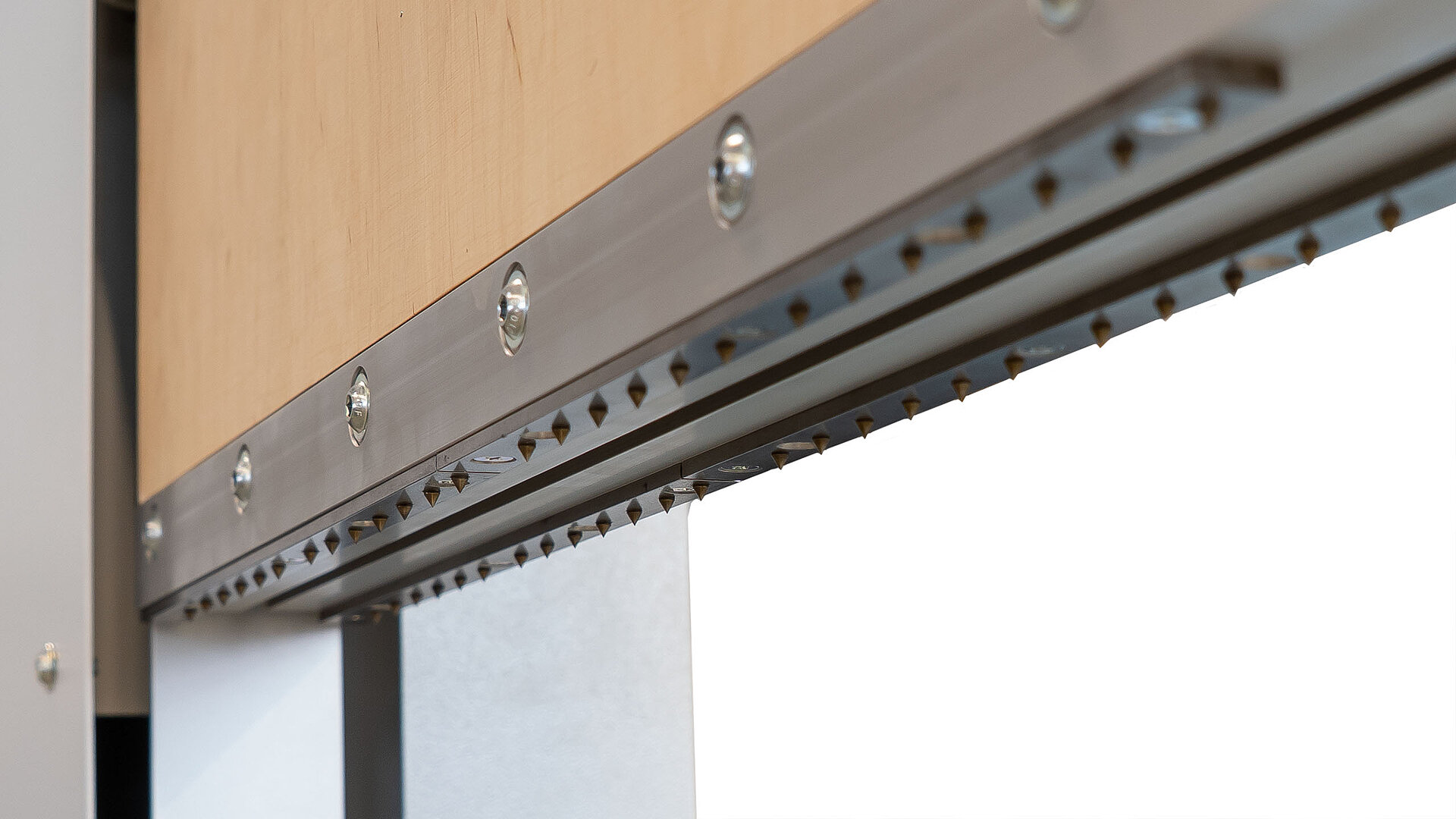

Spikes for challenging woodworking

The spikes serve as a clamping device for unedged workpieces that do not lie along the guide rail. In combination with the positioning laser, this makes the SOLID CUT U 700 an unbeatable cutting saw for any solid wood processor.

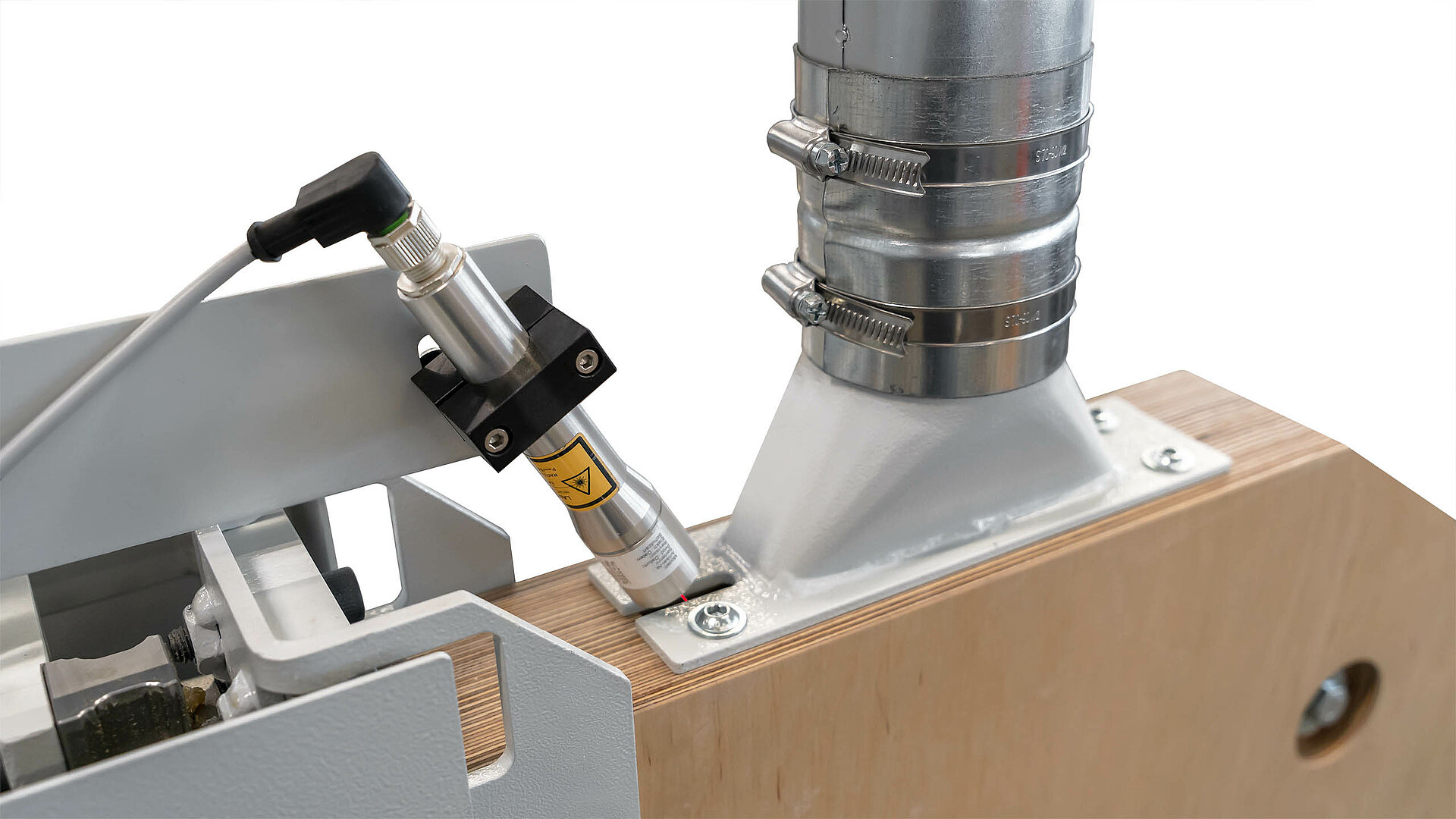

Precise laser for maximum material yield

The position laser on the SOLID CUT U 700 is mounted on the machine stand. It can be used to display the saw blade position precisely using a laser line, making it easier to position the workpiece by hand for a crosscut. The laser allows you to work much more accurately without a stop, especially for fast pre-cutting of unedged workpieces.

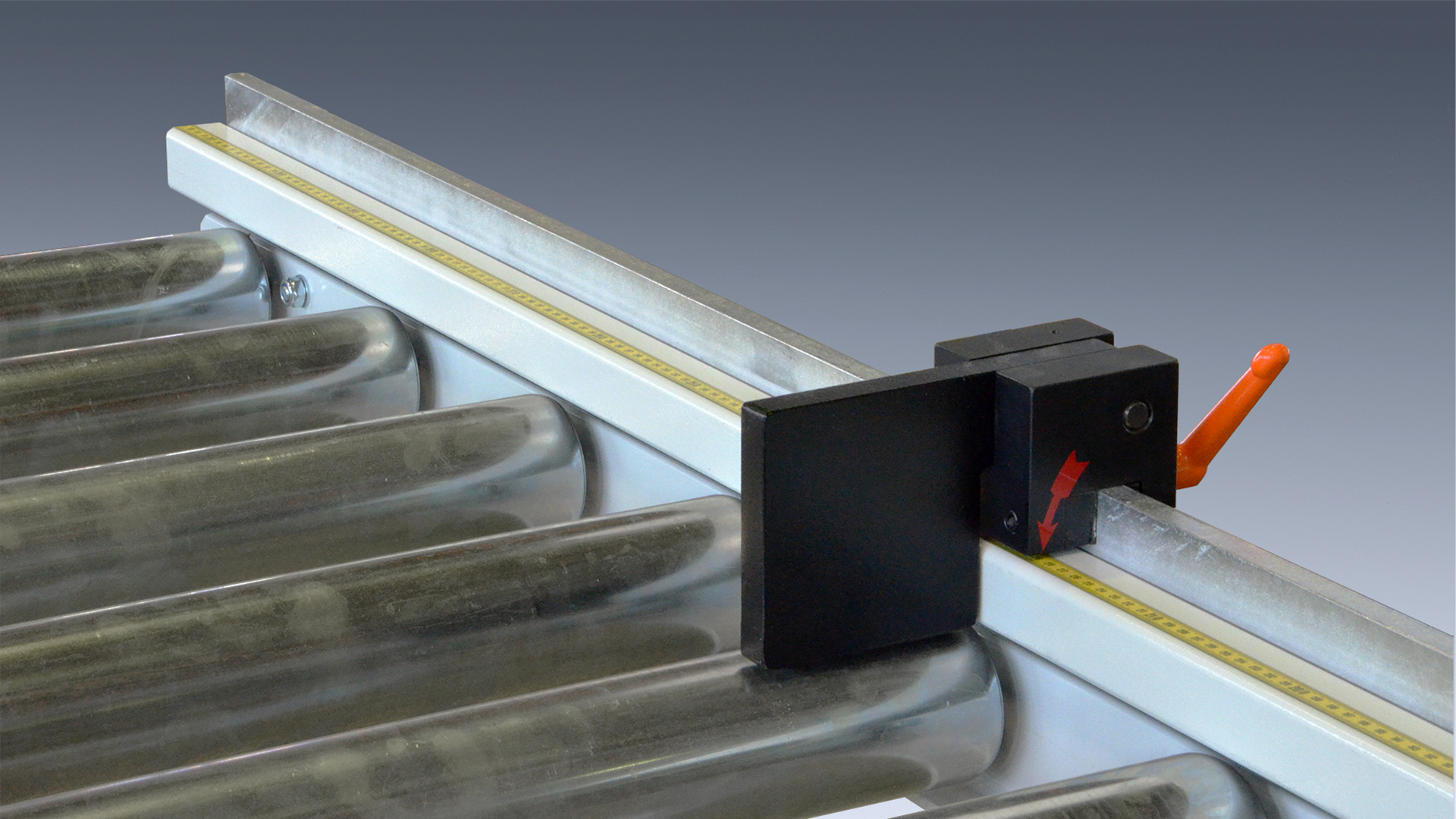

Adjustable stop

An adjustable stop is crucial when repeatedly crosscutting the same lengths. As a result, our OptiCut C-series offers you multiple ways to stop your material. The robust stop flap is a perfect option if you’re using large cross-sections, while the swinging stop is ideal for high operating speeds on smaller or pre-planed parts.

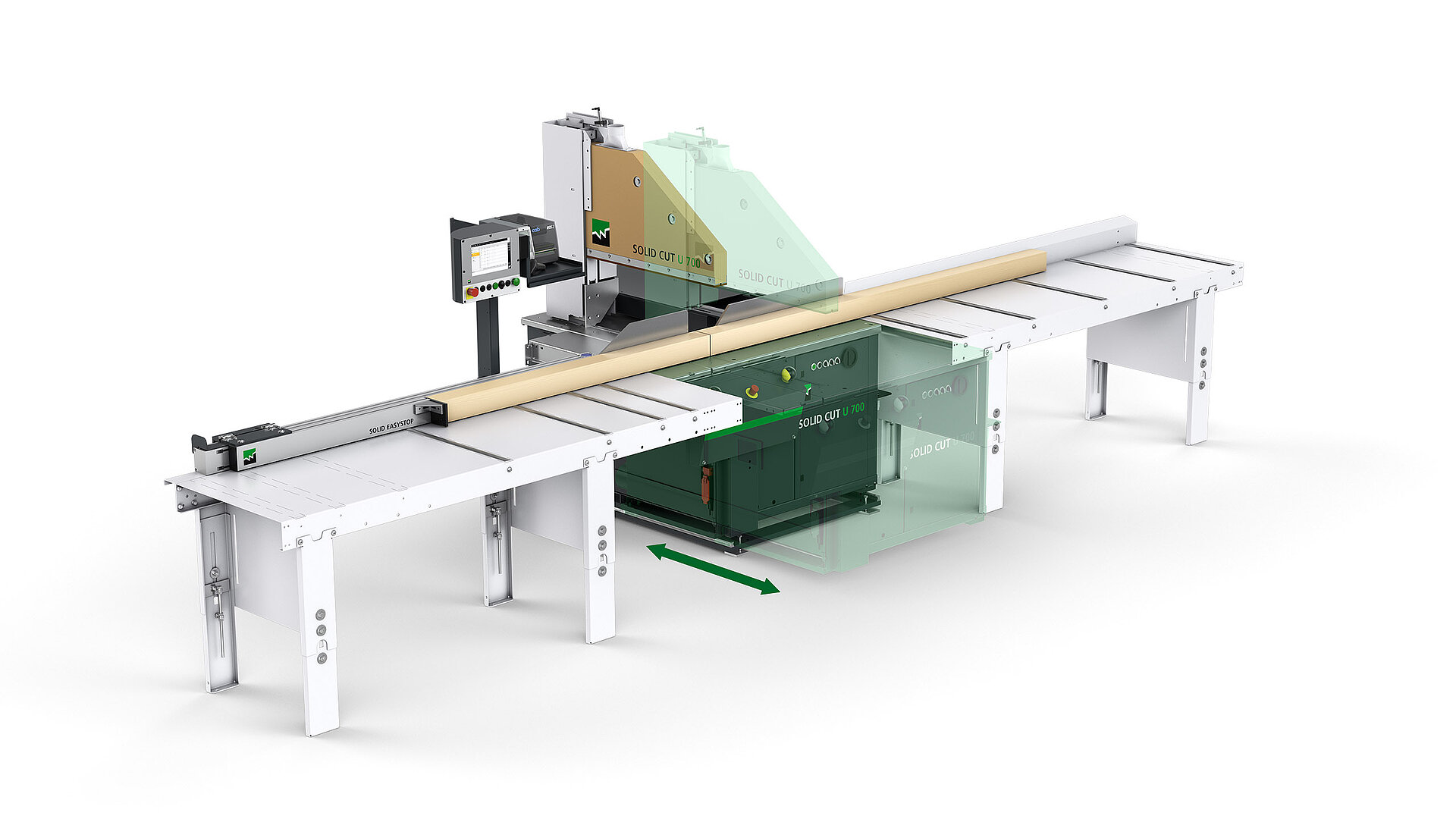

Space-saving solution for the highest ergonomic demands

The SOLID CUT U 700 can be mounted on two linear guides. This allows it to be adjusted manually in depth and clamped pneumatically in any position. The cross-cut saw can be positioned to match the width of the wood. This optimizes the work cycle and reduces non-productive times to a minimum.
