Conturex Vario L

CNC machining center with the perfect symbiosis of performance and flexibility Back to previous page

The (optional) Performance Package for the Conturex Vario L features multi-part sequencing, making the machine even more powerful. In the new version, the double part lengths have been increased. One particularly special feature of this fully automated WEINIG powerhouse is the PowerGrip Motion 2D/3D folding clamp system. It provides significantly more flexibility, especially when producing narrow profile systems and round arches, as well as when doing partial milling for system construction. WEINIG CAM, WEINIG SIM and WEINIG Solid WF are the right software modules for programming, simulating and producing workpieces quickly and easily.

Complete processing in a single setup
Processing without retooling, even for small batches
Fully automated
Energy feedback modules means savings in energy

Conturex Vario L details

Min./max. working width: 20 mm - 330 mm
Min./max. working height: 25 mm - 150 mm
Workpiece length with resetting cycle: 5.200 - 6.000 mm
Main spindles: 30 kW

With the 30 kW main spindle you achieve a significant time-savings combined with higher productivity. Due to the high on-demand power, profiles can be made in just one processing step. In addition, the air-cooled main spindles are virtually maintenance-free and thus guarantee high machine availability.

Conturex Vario XS — Thanks to the available power of the main spindle, tools can, for example, be combined on a mandrel, saving space in the tool magazine. The required tools are changed from the tool magazine into the main spindles fully automatically, and in some cases without any loss of time.

Depending on the automation variant, the Conturex Vario L can operate automatically for several hours and additionally produce during breaks or extension of shifts.

PowerGrip Motion 2D/3D clamping table

With the new PowerGrip Motion 2D/3D clamping table, part dimensions up to 330 mm wide and even the smallest part dimensions can be securely clamped and machined. This means that you are ideally equipped for the future with increasing dimensional diversity and sophisticated profiling.

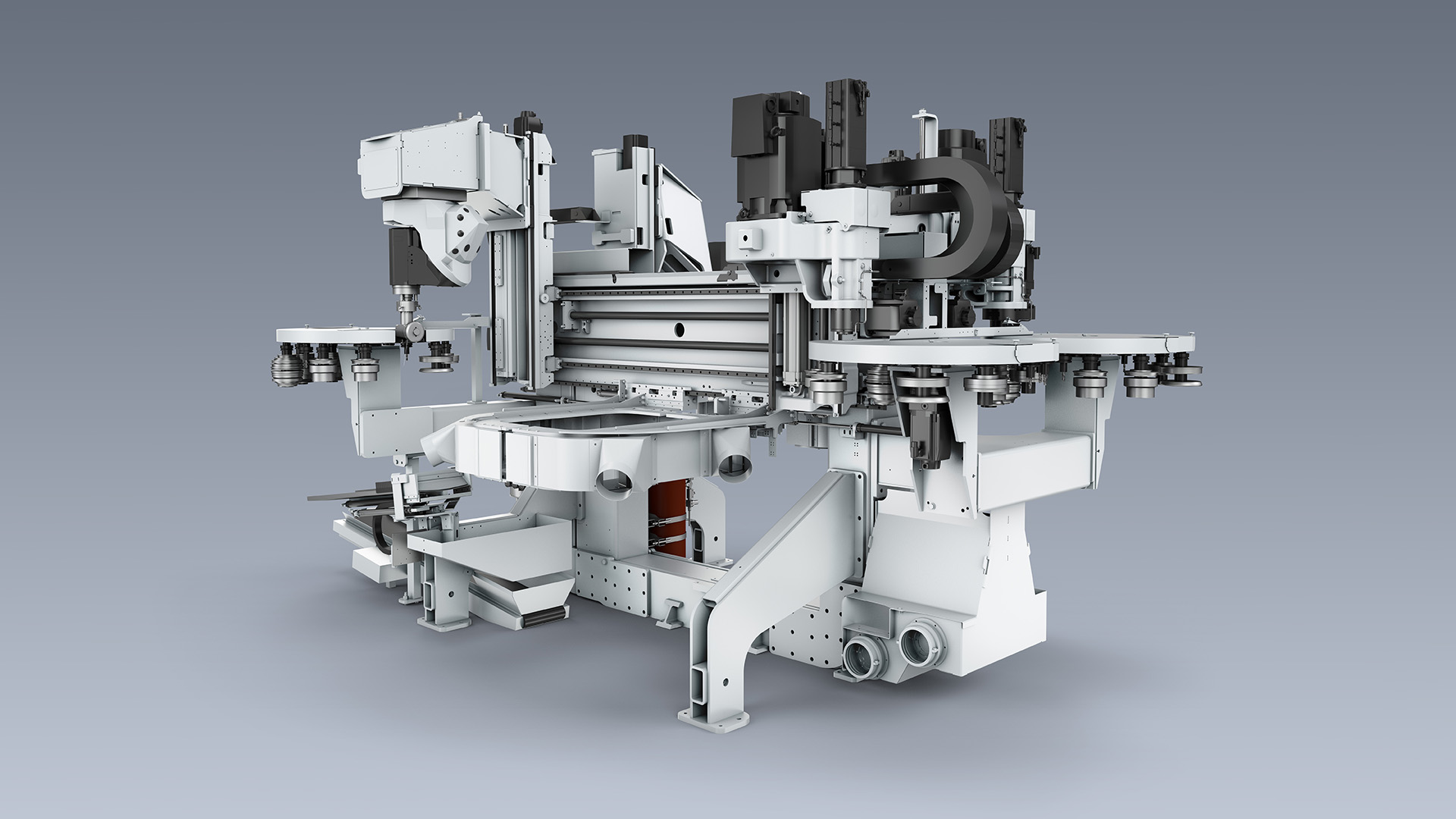

Wide range of equipment variations

The Conturex Vario L offers a variety of equipment variations that allow it to be perfectly matched to your application. For example, you can use a universal spindle for the production of complex window profiles, a 5-axis head for absolute flexibility in furniture production, and multiple spindle drilling heads (MBK) for greater performance in hardware machining.

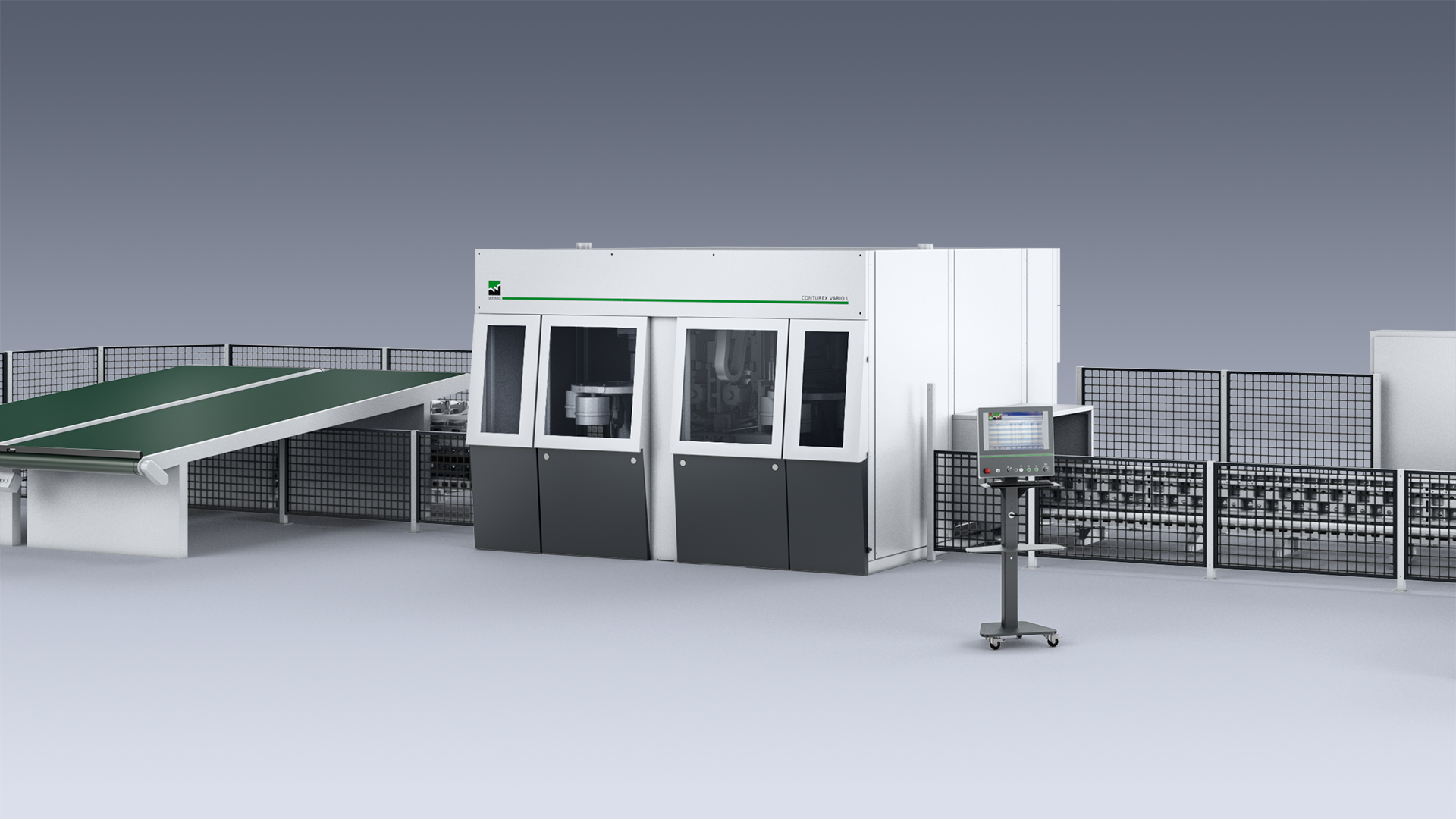

Convenience and safety

Ergonomics and efficiency in maintenance have the highest priority. The new machine cabin improves accessibility for maintenance and increases safety at work enormously. Clear glass panes guarantee optimum visibility into the machine so that you can conveniently monitor the production process at any time.

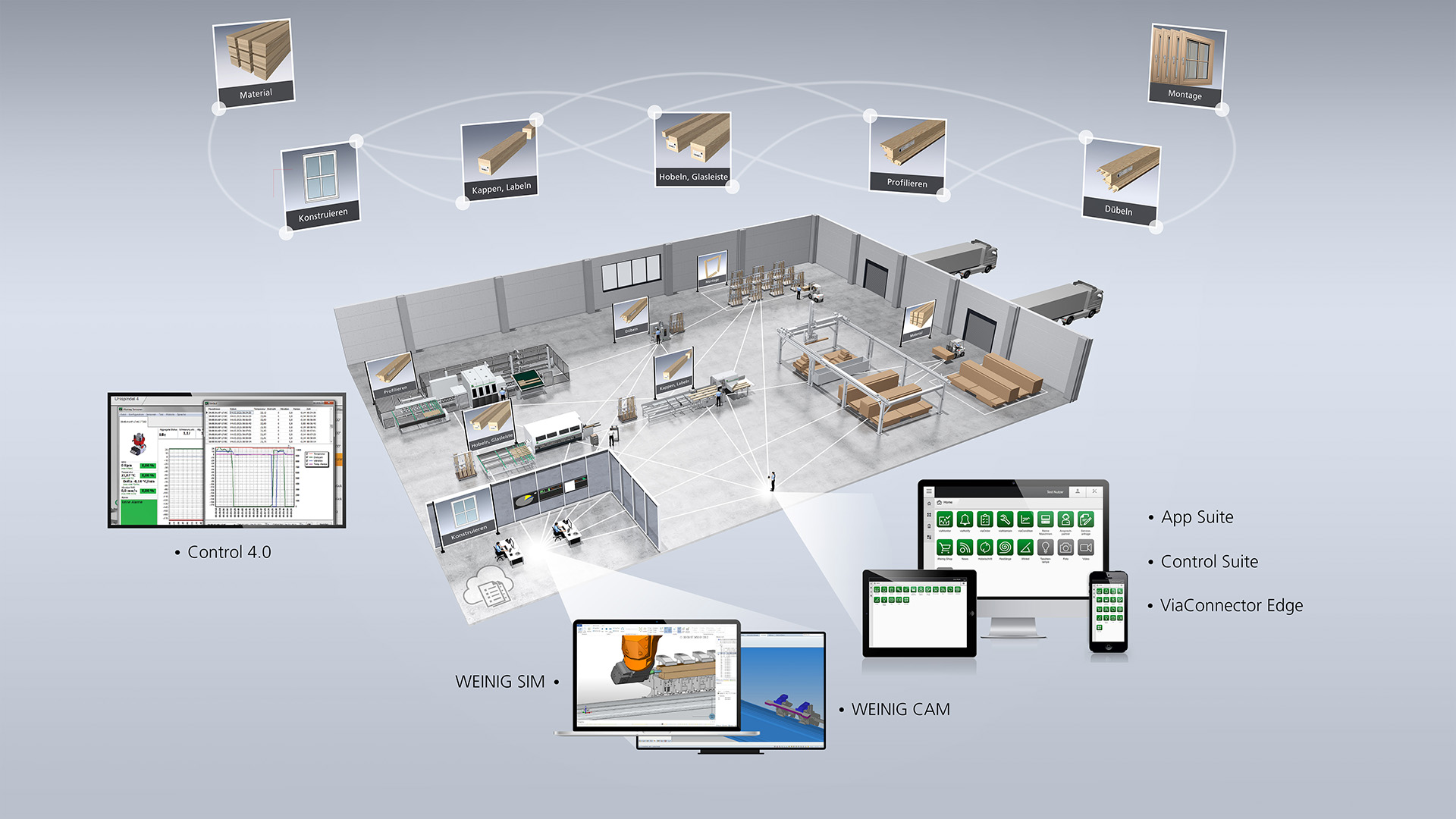

Smart software solutions

03 Panel_Bruestungsbeleimung_V02_150x200

An open interface to all common industry software solutions combined with Weinig CAM provides the optimal programming platform for individual parts. Parametric special parts, conservatory constructions, door leaves and special window shapes can be programmed in no time at all through the simple use of macros. The programs can be simulated subsequently with Weinig SIM, which increases operating safety enormously.

WMC control panel

WEINIG Machine Control (WMC) is the perfect answer to your requirements. Thanks to the isometric representation of the tools on the display unit, the operator can immediately see which tools are in the magazine of the Conturex Vario L and where it is located if replacement is needed. Visual warnings immediately draw the operator’s attention to any positioned workpieces with incorrect dimensions. In this way, errors can be corrected very easily – long before they lead to extra costs or damage.
